Description

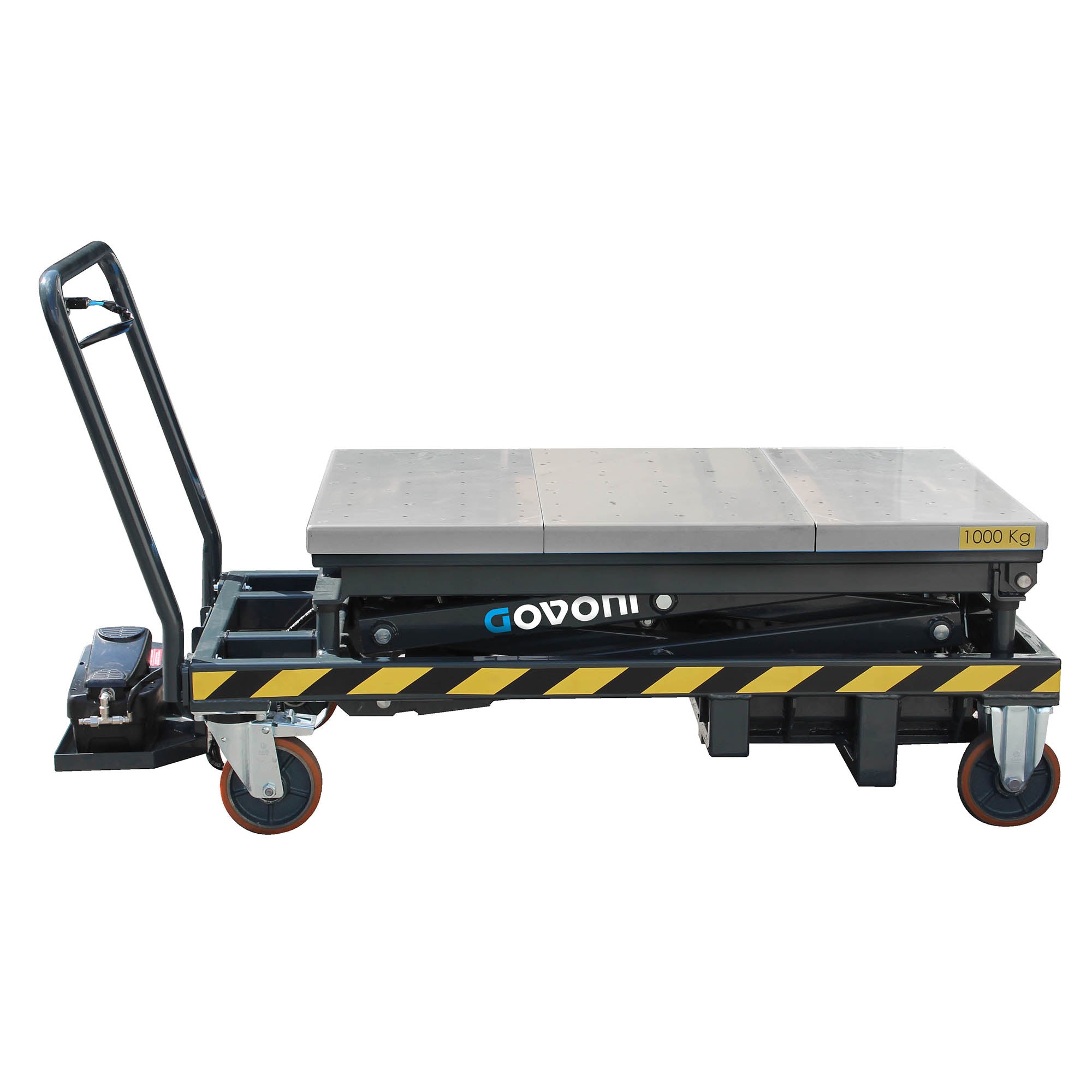

Universal lifting table with a load capacity of 1000kg (1T)
Aside from lifting electric-car batteries, this product is also perfect for lifting and moving engines, automatic gearboxes, chassis components
Features:
- Powered by compressed air.
- Sliding cover, allowing convenient battery installation or removal.
- High ground clearance makes it compatible with all workshop cranes on the market.
- Extendable and tiltable top table, by means of a mechanical screw
- Easy to operate and tilt with self explanatory operations.
- The table features holes with M10 thread, which can be used to mount all types of supports or accessories, including special hooks, brackets, and protective mats for battery packs.
- Button operated table lowering
- Rack safety system, when not being operated, the table locks by means of a mechanical anti-lowering safety wedge.
- Opening Table (1/3 420mm)
- Extendable Table -
- Tilting Table (±3°)
- Shifting Table -
- Extendable Handle -
- Fork Housing -
- Max Capacity 1000 KG
- Time To Go Up 80 s (no load) / 100 s (full load)
- Time To Go Down 60 s (no load) / 20 s (full load)
- Power Supply 6/8 bar
