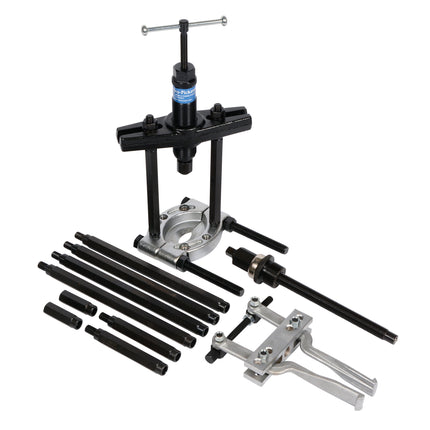

15600000 Hydraulic Internal/External Puller & Separator Kit

Description

Hydraulic 1500 series

  • For removing bearings, gears where access behind components is too restricted to use standard pullers
  • Drop forged, high quality steel, heat treated for strength and durability
  • Separators have tapered edge for insertion behind close fitting bearings, gears etc.
  • Internal puller has screw adjustable legs for positive fit
  • Supplied in metal case

Dimensions:

  • External Spread Min - Max: 35-145mm
  • Internal Spread Min - Max: 40-150mm
  • External Reach Max: 863mm
  • Internal Reach Min - Max: 40 - 150mm

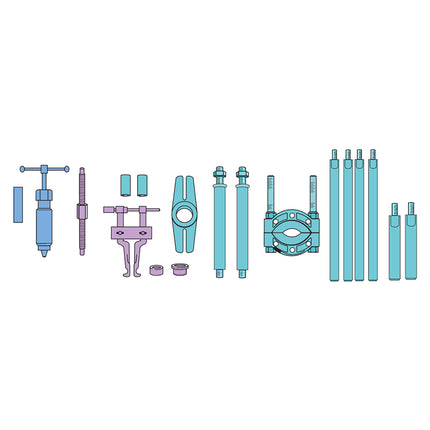

​Contents:

  • 1500 Series Hydraulic Ram With Nose Piece
  • 15272600 1 x Ram Extension - 150mm
  • 19321200 1 x Beam
  • 09520000 1 x Separator 35-145mm
  • 09321500 2 x Main Rods
  • 09321900 4 x Extension Rods
  • 09322300 2 x Extension Rods 5 inch
  • 09350000 1 x Internal Race Extractor
  • 09311100 1 x Forcing Screw C/W Nut
  • 09312100 1 x Thrust Race
  • 09312200 1 x Convertor
  • 09322000 2 x Protectors
Product form

Hydraulic 1500 series For removing bearings, gears where access behind components is too restricted to use standard pullers Drop forged, high... Read more

SKU: 15600000

Icon for notificationEnquire About This Product

Contact us with an enquiry about this product.

Please include a contact number in the message.

Send us a message!

Description

Hydraulic 1500 series

  • For removing bearings, gears where access behind components is too restricted to use standard pullers
  • Drop forged, high quality steel, heat treated for strength and durability
  • Separators have tapered edge for insertion behind close fitting bearings, gears etc.
  • Internal puller has screw adjustable legs for positive fit
  • Supplied in metal case

Dimensions:

  • External Spread Min - Max: 35-145mm
  • Internal Spread Min - Max: 40-150mm
  • External Reach Max: 863mm
  • Internal Reach Min - Max: 40 - 150mm


​Contents:

  • 1500 Series Hydraulic Ram With Nose Piece
  • 15272600 1 x Ram Extension - 150mm
  • 19321200 1 x Beam
  • 09520000 1 x Separator 35-145mm
  • 09321500 2 x Main Rods
  • 09321900 4 x Extension Rods
  • 09322300 2 x Extension Rods 5 inch
  • 09350000 1 x Internal Race Extractor
  • 09311100 1 x Forcing Screw C/W Nut
  • 09312100 1 x Thrust Race
  • 09312200 1 x Convertor
  • 09322000 2 x Protectors
